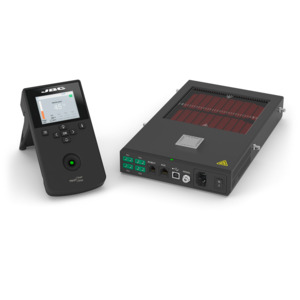

JBC PHSE-1B Preheater, 120V, For PCBs up to 13 x 13 cm / 5 x 5"
Our Part #10147378
Mfr Part #PHSE-1B
JBC PHSE-1B Preheater, 120V, For PCBs up to 13 x 13 cm / 5 x 5"
Our Part #10147378
Condition:New
Mfr Part #PHSE-1B
Condition:New
- Description
- Specifications
- Documents
- Designed for rework on small / medium PCBAs
- Heating area of 130 mm x 135 mm / 5.12" x 5.31"
- Four thermocouple connections
- Three work modes: power, temperature, profile
- 600 watts maximum power
- Two heating zones
- Two heating zonesCan be synchronized with JBC hot air and soldering stations, as well as fume extractors
- Matchless reliability in temperature accuracy and control so that no component is damaged
- This model does not include the PHSS PCB support (for model with PHSS, please see PHSE-1KB)
Indispensable for avoiding thermal shock on multilayer PCBs while reworking.
It is a complete solution to rework small / medium PCBAs, such as the once commonly used in electronic industries. It features a heating area of 130 x 135 mm / 5 x 5 in. and four TC connections.
Matchless reliability in temperature accuracy and control of the PCBA so that no component is damaged.
It features three work modes:
Power Mode allows working at a fixed power level with the option of using protection thermocouple.
Temperature Mode keeps the PCBA at a selected temperature, using the regulation thermocouple and, optionally, protection thermocouples.
Profile Mode allows control of the heating rate of the PCBA by the use of a control and protection thermocouple, without exceeding the recommended limit levels in each application. It features 25 profiles of temperature.
Up to four thermocouples can be connected in any of the three work modes.
Pre-Heater for PCBs up to 5x5”
The PHSE Small Preheater is the best solution for rework on small/medium PCBAs. It features a heating area of 130 mm x 135 mm / 5.12" x 5.31" and four TC connections, offering matchless reliability in temperature accuracy and control so that no component is damaged.
Three work modes
The JBC PHSE offers three unique work modes - temperature, power, and profile. Up to four thermocouples can be connected in any of the three work modes.
Temperature Mode keeps the PCBA at a selected temperature, using the regulation thermocouple and, optionally, protection thermocouples.
