- Description
- Specifications
- Documents
- Features & Benefits
- Lead-free and no-clean
- Alloy exceeds J-STD-006C and meets ASTM B 32 purity requirements
- Flux meets J-STD-004B
- Resin spreads like rosin-activated flux
- Virtually non-spattering
- Non-corrosive residues
- Non-conductive residues
- Halide-free
- About 14% longer by weight than leaded solder wire
- Suitable for Use in Food Facilities as a Non-Food Chemical—Canadian and NFS recognition letters available on request

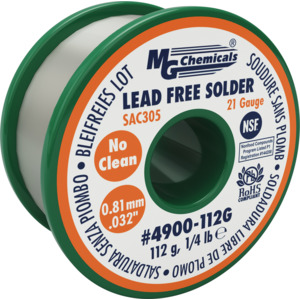

4900 SAC305 No-Clean Solder Wire is electronics grade solder wire. This lead-free solder uses the predominant lead-free alloy composition, exceeds J-STD-006C and meets ASTM B 32 purity specifications. It is complemented with a no-clean, synthetically refined, spatter-proof resin flux core that is classified as REL0 according to J-STD-004B. This solder is a great alternative to leaded solders.
SAC305 lead-free solder achieves a consistent solder and flux percentage thanks to our state-of-the-art extrusion wire-drawing machine, which continuously monitors the wire to prevent voids and ensure consistency, providing a top-grade solder wire
Brand: MG Chemicals
Wire Diameter: 0.032 in (0.81 mm)
Alloy Name: SAC305
Flux %: 0.022
Flux Type: Lead Free
Lead Free: Yes
Alternate Product Number: SAC305
Alloy Type: Near-Eutectic Alloys
Composition: 96.5% Tin, 3% Silver, 0.5% Copper
Gauge: 21
Liquidus Point: 220 C (428 F)
Melting Point: 217 C (423 F)
Melting Range: 217-220 C (423-428 F)
Package Type: Spool
Shelf Life: 1825 days
Size: 113 g (0.25 lb)
