100, 200 & 500 psig

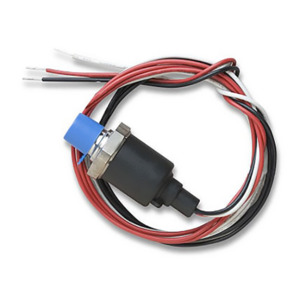

The Ashcroft Gauge Pressure Sensor provides precision pressure measurements in compressed air systems, water, or other compatible gases and fluids, with an accuracy of ±1% FS from -20° to 85°C (-4° to 185°F).

Features

• High-performance pressure transducer for industrial applications.
• 1/4" NPT stainless-steel pressure connection.
• Available in 3 ranges: 100, 200 & 500 psig

The Ashcroft Gauge Pressure Sensor provides precision pressure measurements in compressed air systems, water, or other compatible gases and fluids, with an accuracy of ±1% FS from -20° to 85°C (-4° to 185°F) and only ±1.5% FS -40° to -20°C and 85° to 125°C (-40° to -4°F and 185° to 257°F).

Requirements for use with specific data loggers:

• HOBO MX1100 series: a 0-5 Volt DC input cable (SD-VOLT-05) and external power provided by an AC adapter (AC-SENS-1)
• HOBO U12, UX120-006M or ZW series: a 0-5 Volt DC input cable (CABLE-ADAP5) and external power provided by an AC adapter (AC-SENS-1)
• HOBO RX3000: an analog input module (RXMOD-A1)
• HOBO U30: an analog input module (VIA)
• HOBO H22: an analog input module (S-FS-CVIA)
