FLUKE-87V-MAX Industrial Digital Multimeter
Engineered for professionals who work in the harshest environments, the Fluke 87V MAX True-RMS Digital Multimeter (DMM) is built to go where others can’t. Whether you're climbing ladders, working in extreme temperatures, or navigating wet and dirty conditions, this rugged multimeter is your reliable companion.
The 87V MAX sets a new benchmark for durability and performance. It’s IP67 rated— water resistant and dustproof—and designed to survive drops from up to 4 meters (13 feet) thanks to its industrial-strength casing and removable holster. It operates in temperatures ranging from -15C to +55C (5F to 131F, -40C for up to 20 minutes) and up to 95% humidity, making it ideal for demanding fieldwork.
Packed with all the trusted features of the original 87V, the MAX version adds enhanced durability and double the battery life. It measures up to 1000 V and 10 A (20 A for 30 seconds), with true-RMS accuracy for non-linear signals. Additional features include a built-in thermometer, low-pass filter for noisy environments, high-resolution 20,000 count display, and a bright dual-level backlight with illuminated keypad.
With safety ratings of CAT IV 600 V and CAT III 1000 V, and protection against 8,000-volt spikes, the Fluke 87V MAX is the ultimate tool for industrial electricians, HVAC technicians, and field engineers who demand precision and resilience.

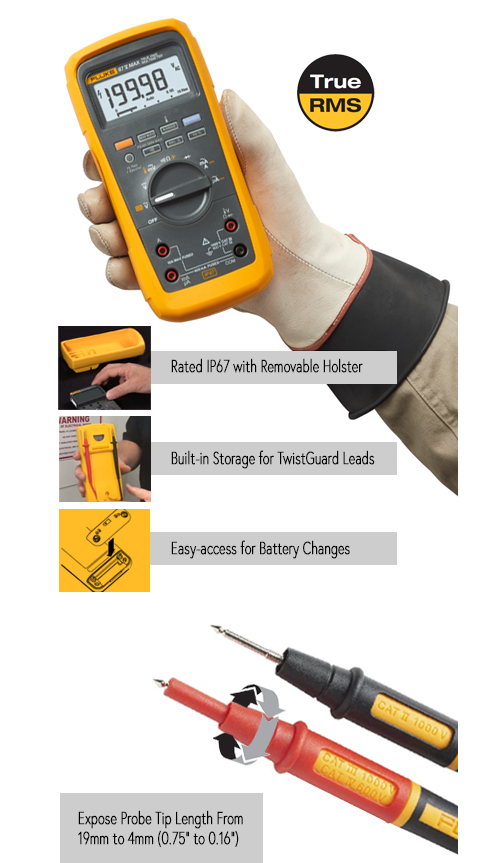

Fluke’s Most Rugged DMM Highlights
For Use in Extreme Environments
IP67 water resistance and dustproof protection
Tested to withstand 4 meter drop (with holster)
Functions in hot and cold environments with extended operating temperature range of -40C (for up to 20 minutes) to +55C
Industrial strength and removable holster
Holster with test lead storage and holds probe for one-handed operation
Large digit display with bright, two-level backlight for easier reading
Backlit keys for dark environments and increased visibility
Up to 800 hours of battery life

Features and Specifications
87V Max (87-5 MAX)
Measure up to 1000 V, up to 10 A (20 A for 30 seconds), ac and dc
TRMS ac voltage and current for accurate measurements on non-linear signals
10,000 µF capacitance range, frequency to 200 kHz
Extended ac voltage bandwidth 15 Hz to 20 kHz
Low-pass filter for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
Resistance, continuity and diode test
Min/Max/Average recording, plus 250 μs Peak min-max
to capture variations automatically4-1/2 digit mode for precise measurements (20000 counts)
Relative mode to remove test lead resistance from low ohms measurements
Withstands 8,000 volt impulses protecting you from arc blast resulting from surges and spikes
Input Alert warning (audible beep)
Built-in thermometer conveniently allows users to take temperature readings without having to carry a separate instrument
The included Fluke 80BK-A is a Type-K thermocouple probe designed for general-purpose temperature measurements. It works with the 87V Max multimeter built-in temperature function to measure from -200.0C to +1090C (or -328.0F to 1994F).
The provided Fluke TL175 TwistGuard Test Leads offer adjustable length test tips for use in different measurement environments from CAT II 1000 V, CAT III 1000 V to CAT IV 600 V, 10 A max.

Fluke 80 Series V Multimeters
The 80 Series V, available in three models, incorporates the trusted features of today's most popular Fluke digital multimeters. Designed for enhanced precision and reliability, these models offer improved measurement capabilities, troubleshooting functions, and greater resolution and accuracy. Industrial electricians around the world trust the Fluke 83V Industrial Multimeter from the control room to the plant floor. The True-RMS Fluke 87V and the 87V Max feature a specialized function for precise voltage and frequency measurements, even in electrically noisy environments such as adjustable-speed motor drives. Additionally, they both feature a built-in thermometer allowing for convenient temperature readings without requiring a separate device.

Function | 83V | 87V | 87V MAX |
---|---|---|---|
Type | Industrial Multimeter | True RMS Industrial Multimeter | True RMS Industrial Multimeter |
CAT rating | CAT III 1000 V, CAT IV 600 V | CAT III 1000 V, CAT IV 600 V | CAT III 1000 V, CAT IV 600 V |
True-rms readings | No | Yes | Yes |
Voltage AC/DC | 1000 V | 1000 V | 1000 V |
Current AC/DC | 10 A | 10 A | 10 A |
Resistance | 50 MΩ | 50 MΩ | 50 MΩ |
Capacitance | 9,999 µF | 9,999 µF | 9,999 µF |
Measures temperature | No | -200 C to 1090 C | -200 C to 1090 C |
Additional measurement | Resistance, continuity/diode test | Frequency, continuity/diode test, | Conductance, continuity/diode test, |
IP rating | IP 30 | IP 67 | |
Battery life | 400 hours | 400 hours | 800 hours |
Drop test | 1 meter | 3 meters | 4 meters (13 feet) |
Backlit keypad | No | No | Yes |

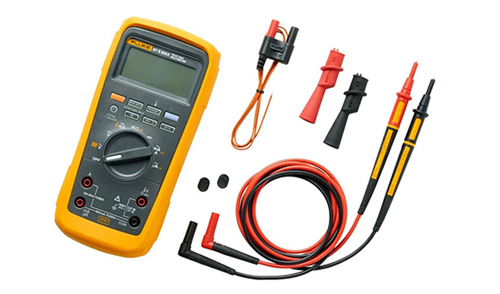

What's in the Box
87V MAX True-rms Digital Multimeter
TL175 TwistGuard Test Leads
AC175 Alligator Clips
80BK-A type-K DMM Temperature Probe
