Fluke FLUKE-116/62 MAX+ HVAC Multimeter / IR Thermometer Kit: 10 A, TRMS, 12:1 Spot
Our Part #16197.4
Mfr Part #FLUKE-116/62 MAX+
Fluke FLUKE-116/62 MAX+ HVAC Multimeter / IR Thermometer Kit: 10 A, TRMS, 12:1 Spot
Our Part #16197.4
Condition:New
Mfr Part #FLUKE-116/62 MAX+
- Description
- Specifications
- Documents
Fluke 116 Digital Multimeter
116 DMM Key Features
- Built-in thermometer for HVAC applications
- Microamps to test flame sensors
- Low input impedance: prevents ghost voltage readings
- Work in poorly lit areas with the Large white LED backlit display
- TRMS voltage and current for accurate non-linear load measurements
- Measures 10 A directly (20 A overload for 30-sec.) WO/ a current clamp
- Resistance, continuity, frequency and capacitance
- Record signal fluctuations using Min/Max/Average and elapsed time stamps
Having the right tool for the job is essential. Having all the right tools when you need them is even better. The Fluke 116/62 Max+ Technicians Combo Kit gives you the best in a versatile, rugged multimeter and am infrared thermometer.
The Fluke 116 comes with the Fluke 80BK-A integrated DMM temperature probe. The microamp function allows flame sensor measurement down to 0.1 microamps. The AutoV/LoZ function prevents false readings caused by ghost voltage. The Fluke 116 also has a large white LED backlight for work in poorly lit areas. It measures resistance, continuity, frequency, and capacitance and provides Min/Max/Average readings with elapsed time to record signal fluctuations.
Fluke 116 multimeters are independently tested for safe use in CAT III 600V environments.
Perform A Wide Range Of HVAC/R Tests
Measure superheat and subcooling
Measure key temperatures and pressures. Use the Fluke 116 with a Fluke velcro pipeclamp (80PK-11) and a pressure module (PV350) to determine superheat and subcooling values.
Detect problems like a clogged filter drier, undercharge, overcharge, faulty metering device or improper airflow, liquid line restriction or insufficient water flow.
Check the temperature of the air coil
Confirm when the defrost cycle starts and ends
Take temperature surveys
Test out compressor heads, oil sumps, evaporator coils and suction lines, plus discharge lines, condenser coils and the liquid line
Microamps measurement for testing flame sensors
When a furnace flame will not stay lit, use the Fluke 116 microamps measurement to troubleshoot the flame rod circuit.
LoZ - Low impedance input
Reduces chance of false readings due to ghost voltage with new low impedance design
Safer troubleshooting in high energy 3-phase distribution panel with IEC61010 ratings
62 MAX+ IR Thermometers Have the Precision You Need
The Fluke 62 MAX+ infrared thermometer is everything you'd want in your toolbox. Small in size, extremely accurate and yet easy to use. IP54 rated for dust and water resistance. Precise yet rugged enough to take a 3-meter drop.
62 MAX+ Key Features
- Measures -30°C to 650°C (-22°F to 1202°F)
- Extremely accurate: up to + 1.0°C or + 1.0% of reaching
- IP54 rating for water resistance and dust proof
- Strong enough to withstand a 3m drop
- Small and lightweight; clips to your tool belt or belt loop or easily fits into your tool box
- Dual lasers that identify area to be measured
Together, the Fluke 116 HVAC Multimeter and 62 MAX+ Infrared Thermometer give HVAC technicians the right tools for the job.

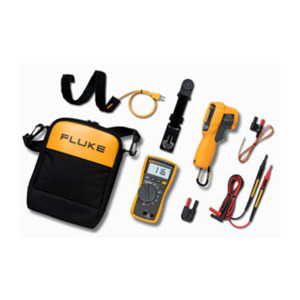

What's in the Box
Fluke 116 HVAC Multimeter includes:
- TL175 Hard Point Test Lead Set
- TPak ToolPak Magnetic Meter Hanging Strap
- Flexible Cuff Pipe Clamp Thermocouple
- 80BK Integrated Temperature Probe
- 80AK-A Thermocouple Adapter
- C115 Deluxe Soft Carrying Case with Shoulder Strap
Fluke 62 Max+ Infrared Thermometer includes:
- Infrared Thermometer
- Dual laser infrared thermometer, 12:1 spot
- Easy to use with one hand (Hands free operation with magnetic hanger
- CAT III 600 V safety rated
