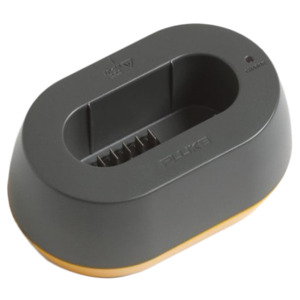

Fluke EBC290 External Battery Charger

EBC290 is an External Battery Charger for compatible Li-ion batteries used within Fluke Test Tools. It is powered by Power Adapter BC190, which supplied with the Fluke 190 Series II ScopeMeter. Instead of Power Adapter Model BC190 you can also use Model BC430. EBC290 is provided with a microprocessor controlled charging circuit to optimally charge the battery.

Features and Specifications:

• Charges BP291 battery while outside instrument
• LED indicator
• Adapter requirement 17.8 V / 0.84 A
• Input current limitter 714 mA ±5%
• Input voltage range 15 to 23 V
• Battery type BP291 / BP290
• Capacity 52 Wh 26 Wh
• Charge time 5.5 hours < 3 hours

Compatible with:

• Fluke ii900 Industrial Acoustic Imager
• Oscilloscopes:
  • 190-062 ScopeMeter Test Tool
  • 190-062/S ScopeMeter Test Tool
  • 190-102 ScopeMeter Test Tool
  • 190-102/S ScopeMeter Test Tool
  • 190-104 ScopeMeter Test Tool
  • 190-202 ScopeMeter Test Tool
  • 190-202/S ScopeMeter Test Tool
  • 190-204 ScopeMeter Test Tool
  • ScopeMeter 190-204/S Oscilloscope
  • 190-502 500 MHz ScopeMeter Test Tool
  • 190-502/S ScopeMeter Test Tool
  • 190-504 500MHz ScopeMeter Test Tool
  • ScopeMeter 190-504/S Portable Oscilloscope
  • 190 Series III ScopeMeter Test Tools
  • MDA-510 and MDA-550 Motor Drive Analyzers
  • MDA-550 Series III Motor Drive Analyzer
• Power Quality Analyzers:
  • 434-II and 435-II Power Quality and Energy Analyzers
  • 437 Series II 400 Hz Power Quality Monitor and Energy Analyzer
  • 438-II Power Quality Analyzer and Motor Analyzer
