SW-Pro-DFB Digital Filter Box Upgrade

Features:

• Sampling rate: 305.18 kHz or 39.063 MHz
• Filter order: 2, 4, 6, 8
• Input-output latency: sub-microsecond
• Input rate: ± 20 V
• Output range: ± 5 V into 50 Ω
• API support: Python, MATLAB, LabVIEW

With the Moku:Pro Digital Filter Box, you can interactively design and generate different types of infinite impulse response filters with sampling rates of 305.18 kHz and 39.063 MHz. Select from lowpass, highpass, bandpass, and bandstop filter shapes with up to seven fully configurable filter types including Butterworth, Chebyshev, and Elliptic. This instrument can be deployed independently or as a part of a Multi-instrument Mode configuration.

Filter shapes
Lowpass, highpass, bandpass, and bandstop

Filter types
Butterworth, Chebyshev I, Chebyshev II, Elliptic, Bessel, Gaussian, and Legendre

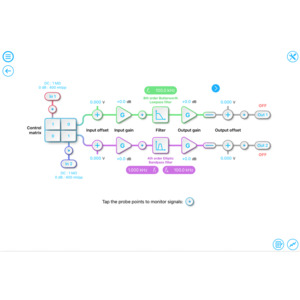

Visualize your signal and configuration in real time
Design your filter's frequency response using the interactive frequency or phase plots

Onboard oscilloscope
Built-in, 4-channel oscilloscope to view the signal-processing chain

Versatile input and output options
4 input channels, 4 output channels with optional blending between inputs

Build your own IIR filters
Supports custom filter designs

Applications:

• Custom phase-locked loop
• Gravitational wave detection
• Closed-loop control systems
• Pound-Drever-Hall technique
• Precision spectroscopy
