SW-Lab-PID Upgrade PID Controller

Features:

• 2 input channels, 2 output channels
• > 10 MSa/s output sampling rate
• 16-bit DAC resolution
• < 30 degree phase lag at 100 kHz
• Real-time gain configuration
• API support: Python, MATLAB, LabVIEW

The Moku:Lab PID Controller instrument features two fully configurable PID controllers with an output sample rate of 10 MSa/s. This enables them to be used in applications requiring both low and high feedback bandwidths such as laser temperature and current stabilization. The PID Controller can also be used as a lead-lag compensator by saturating the integral and differential controllers with independent gain settings.

Versatile configuration options
2 input channels, 2 output channels, 2 independent PID controllers with control matrix for configurable combining of inputs

Gain profiles
Proportional (P), integral (I), differential (D), double-integral (I+), integral saturation (IS), differential saturation (DS)

Gain configuration
Real-time

Visualize your signal and configuration in real-time
Design your control system’s frequency response using the interactive Bode plot.

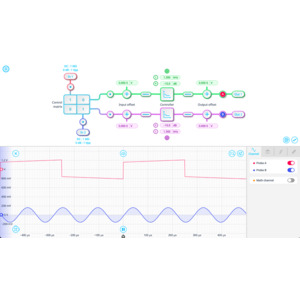

The interface displays a block diagram view of the digital signal
processing with built-in probe points for signal monitoring.

Advanced multi-section PID builder
Includes single or double integrators and differentiators with low- and high-frequency gain saturation

Application:

• Feedback and control systems design
• Laser frequency stabilization
• Temperature regulation
• Scan heads/sample stage positioning
• Pressure, force, flow rate, and other controls
