Keysight MXR2FRE Frequency Extension

Features and Specifications

• Frequency Range: 0 Hz to Oscilloscope Bandwidth
• Analysis Bandwidth: 40 MHz
• Center Frequency Control: All channels are locked together
• For MXR and MXR B-Series

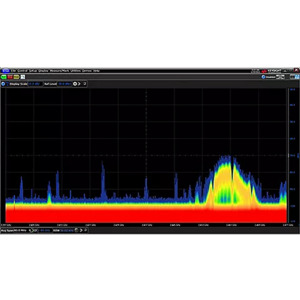

The maximum center frequency (CF) for RTSA and DDC is determined by the bandwidth of the purchased scope, or it can reach up to 6.3 GHz with a Frequency Extension. The MXR2FRE (Frequency Extension) enables the use of RTSA and DDC up to 6 GHz, regardless of the scope's bandwidth. This feature provides a cost-effective solution for those focused on RF or those with specific testing requirements, as they can avoid buying a higher bandwidth analog scope. The MXR2FRE upgrade option empowers them to perform high-frequency RF tasks.
