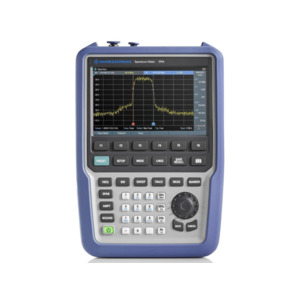

R&S Spectrum Rider FPH-20G w/ Upgrade

Features and Specifications

• 5 kHz to 20 GHz bandwidth (includes the FPH-B20 frequency upgrade option)
• Resolution bandwidths: 1 Hz to 3 MHz (in 1/3 sequence)
• DANL at 3 GHz (preamp on): < –163 dBm
• Turn on included preamplifier to further increase the sensitivity
• Phase noise, 100 kHz offset: 105 dBc/Hz at f = 500 MHz
• Touchscreen gestures and backlit keypad
• Scalar frequency response measurements
• Measurement wizard that supports measurement campaigns, speeds up measurements and avoids errors
• EMI debugging with optional near-field probes

Overview

The R&S Spectrum Rider FPH has exceptional phase noise and DANL to capture known and unknown signals. R&S SpectrumRider FPH easily measures a wide range of parameters such as total harmonic distortion, occupied bandwidth, output power and channel power.

It is designed for both indoor and outdoor field applications and use in labs. Large buttons and a multifunction rotary control allow operation even when wearing gloves. The backlit keypad makes the analyzer usable in the dark, and the bright non reflecting display is readable in bright sunlight. The battery lasts an entire working day. The light weight, small form factor and ruggedness make the analyzer easy to carry. It is a reliable companion even in harsh and difficult-to-reach environments.

Applications:

• Spectrum analysis for example: Mobile communications, Radar and satellite communications, Broadcasting
• Provides features and options for various industries such as aerospace and defense, wireless communications, broadcasting, spectrum regulators and education

Options for the FPH Series:

• Tracking generator (30 kHz to 44 GHz) is only available for model 23, model 36 and model 54
• Power measurements with power sensors
• Internal channel power meter
• Pulse measurements with power sensors
• AM/FM analysis
