UNI-T UT181A Digital Multimeter, 60,000 Count, 1000 V, 10 A, TRMS, Datalogging, UT181 Series

Uni-T UT181A Handheld Digital Multimeter

Features and Specifications

• Max V DC: 1000VDC
• Max A DC: 10A

• Max V AC: 1000V

• Max A AC: 10A
• True RMS
• 60,000 Count
• 4 5/6 Digits
• Trend Capture
• 20,000pts Datalogging
• Graphing Display
• Capacitance
• Frequency
• Temperature
• LoZ
• USB
• CAT III 1000V / CATIV 600V
• 3.5-inch 64K color TFT LCD display
• IP65 water proof
• Rechargeable battery
• Supports Bluetooth

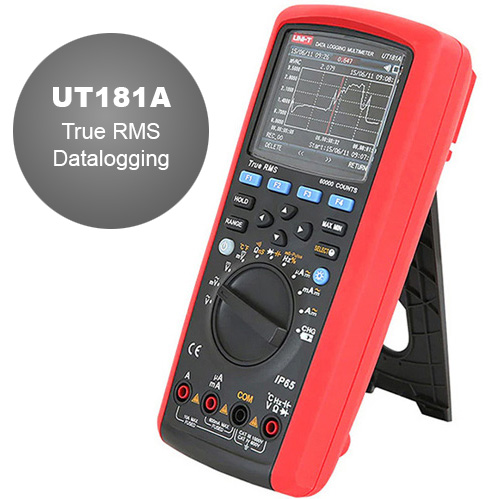

UT181A Overview

The Uni-T UT181A is an auto-ranging Digital Multimeter (DMM). It can be used to measure parameters such as AC and DC voltage, AC and DC current, resistance, conductance, diode, continuity, capacitance, temperature, frequency and pulse width. It offers True RMS, ensuring accurate measurements irrespective of the waveform. The device is also equipped with a trend capture feature that allows users to monitor changes over time.

In addition, the high-resolution 60,000 count display ensures precise readings. It also offers a data logging capability, which can store up to 20,000 sets of measurement data. The logged data can be visualized on a trend graph thanks to its graphing display in color at 3.5 inches (320x240). The multimeter also provides dual temperature measurement, allowing it to measure two temperatures simultaneously.

On-The-Go Connectivity

For easy data transfer, the UT181A includes USB connectivity via cable and Bluetooth is available with the optional UT-D07 adaptor. For mobility, the iDMM smart phone application can be used for data transferring or collection and allows emailing of data.

Working in the Field

The device is rated IP65, making it dust-tight and protected against water jets. Powered by a 2000mAh Li-ion battery and chargeable, the UT181A TRMS Datalogging Digital Multimeter is an excellent choice for professionals requiring precise measurements and long-term monitoring capabilities.

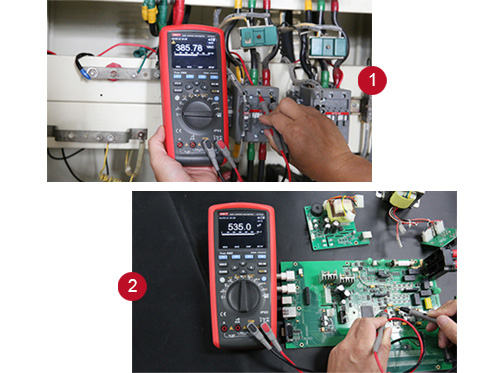

Applications of UT181A Multimeter Include

1. AC voltage measurement
2. Capacitance measurement

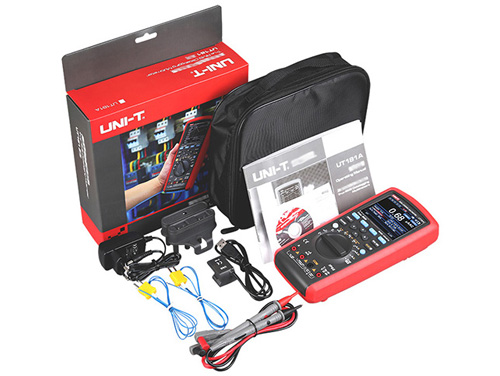

What's in the Box

• UT181A Digital Multimeter
• Battery
• Test Lead
• Temperature Adapter
• Power Adapter
• Temperature Probes
• CD Software
• USB Cable
