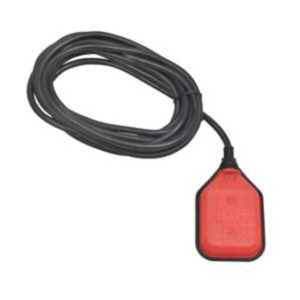

Madison Company: M4189-1003

The M4189 Series tilt float switch provides efficient and highly reliable level detection in open vessels, sumps and ponds.

The molded plastic float has an integral three conductor cable which is connected to an SPDT micro-switch that is sealed inside the float. As the float rises or falls 30Deg to 45Deg about a horizontal location where the cable is anchored, the switch changes state from normally open or normally closed as the float swings up and down.

Key Features

• Tilt Float Single Point Level Switch
• Material:Polypropylene
• Max. pressure: 14.5 psi
• Max. temperature: 158F / 70C
• Switch rating: 16A at 250V AC (8A switching), SPDT
• Constructed of polypropylene for long service life and resistance to heat, oxidation, ozone and aging due to weather.
• Good electrical resistivity, and resistance to polar solvents such as water, acids, alkalies, phosphate esters and many ketones and alcohols.
• Lead Wire Length: 49.2'
