Madison Company: M5010

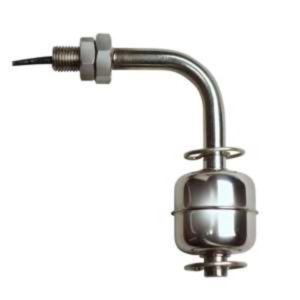

The M5010 side mount liquid level float switch has a stainless steel stem and float. These switches easily mount into a drilled through-hole for bulkhead mounting. It can be side mounted with the float 90Degabove or below the through-hole.
Madison Company can also manufacture custom bent stem float switch lengths for your OEM application.
Applications
- Corrosive environments
- Medical
- Food processing
- Heating and Cooling
Key Features
- Miniature Side Mount Float Level Switch
- Bent Stem
- Stem and Float Material: 316 stainless steel
- Mounting: 3/8-24 UNF and 1/8" NPT
- Max. temperature: 392F/200C
- Max. pressure: 300 psi
- Switch rating: 30 watt, SPST
- Minimum Media SG:0.91
- Lead Wires:24”, 22 AWG, Teflon Insulated (standard)
- Approvals:CE, UL, CSA
- Mounting:3/8-24UNF
Brand: Madison Company
Series: M5010 Series
