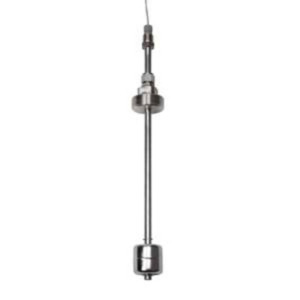

Madison Company: M5602-7808-2

The M5602-7808-x Series Downward float switch height adjustment can be as much as 2", and an upward adjustment can be as much as 9". This allows for a series of tanks to use the same level switch configuration and provide easier field adjustments for low-level indication. Multi-level indications can also be provided.

The adjustment is made by loosening the compression fitting on the top of the 2" NPT pipe plug and moving the entire stem up or down as needed. The M5602-7808-x series is manufactured with nylon ferrules in a compression fitting. These types of ferrules allow the end-user to adjust the length multiple times. The retaining rings cannot be moved unless the operation needs to be changed from normally closed to normally open.

Applicable Industries

• Petroleum-based liquids, lubricating oils, gasoline and diesel fuels
• Storage tanks of vehicles, generators, transmissions, hydraulic systems
• Fluid recovery, refining and fuel processing

Features

• Allows the end-user to adjust switch depth or height
• Can overcome uneven tank stands to allow for accurate low-level indication
• Can change operation from normally closed to normally open

Operation

• Normally closed, opens on a rising level. Users can reverse operation.

Key Features

• Adjustable Float Level Switch
• Adjustable Range:1.5 - 24"
• Length Total:25.5"
• Minimum Media SG: 0.69
• Stem & Float Material: 316 Stainless Steel
• Max. temperature: 392F/200C
• Max. pressure: 200 psi
• Switch rating: 60 watt, 240V max. (AC/DC), SPST
• Lead wires: 72", 22 AWG, 2 conductor, Teflon jacketed cable
• Electrical Ratings:240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A
• Approvals:CE, UL, CSA
