Madison Company: M5900

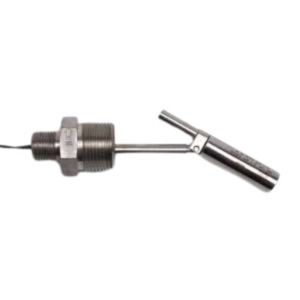

The M5900 Side Mounted Level Switch has a stem and float made from 316 Stainless Steel, which is extremely durable and able to withstand the toughest environments. Its small size makes the M5910 ideal for small tanks and vessels.

Well-suited for corrosive environments, as well as food processing, medical, heating, and cooling applications. This series of stainless steel side-mounted float switches are among the most durable float switches in the industry.

Applicable Industries

• Food-grade fluid level control
• Hot water boilers and steam generator tanks
• Chemical tanks, fuel tanks and other hazardous locations

Key Features

• Side Mounted Float Level Switch
• Stem and Float Material: 316 Stainless Steel
• Max. temperature: 392F/200C
• Max. pressure: 300 psi
• Switch rating: 30 watt, SPST
• Electrical Ratings 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A
• High-pressure and high-temperature industrial tank level control
• Available with extended stem lengths
• Mounting 1” x 1/2” NPT
• Minimum Media SG 0.75
• Lead Wires 24”, 22 AWG, Teflon Insulated (standard)
• Approvals CE, UL Haz. Loc., CSA Haz. Loc., NSF
