Madison Company: M5917

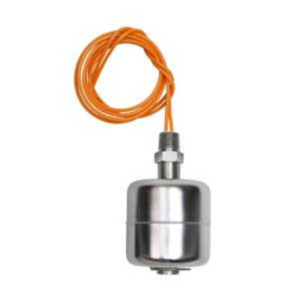

The M5917 Single Point Level Switch is made with 316 Stainless Steel, which supports continuous functionality in high-temperature applications. With NSF approval, the M5917 is ideal for use in a variety of food applications.

The food industry's leading high-temperature stainless steel float switch. Provides many years of trouble-free switching in even the harshest conditions.

Applications

• Specific gravity designed to float in hot oils, ideal for ambient and pressurized food fryers
• Food processing
• Steam tables
• Heating & cooling

Key Features

• High Temperature Single Point Float Level Switch
• Float & Stem Material: 316 stainless steel
• Float Diameter: 2.13"
• Max Pressure: 200 psi
• Max. Temp: 482F/250C
• Switch Rating: 60 watt, SPST
• Electrical Ratings 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A
• Mounting 1/4” NPT
• Minimum Media SG 0.69
• Lead Wires 24”, 18AWG, Teflon insulated
• Approval CE, UL, CSA, NSF
