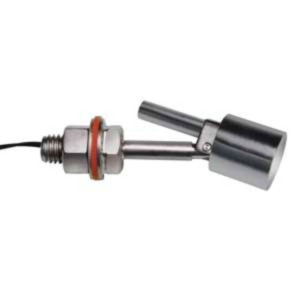

Madison Company: M5970

The M5970 single point level switch is made out of 316 Stainless Steel material the small size design is ideal for small tanks or vessels. The material make up also allows for compatibility with corrosive environments.

Ideal for high-temperature and well-suited for corrosive environments. The M5970 Series stainless steel side mounted float switches are among the most durable float switches in the industry.

Applications

• Food processing
• Medical
• Petrochemical

Key Features

• Side Mounted Single Point Float Level Switch
• Stem and Float Material: 316 Stainless Steel
• Max. temperature: 392F/200C
• Max. pressure: 100 psi
• Switch rating: 30 watt, SPST
• Electrical Ratings 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A
• Mounting 1/2-13 UNC
• Minimum Media SG 0.88
• Lead Wires 24”, 22 AWG, Teflon Insulated (standard)
• Approvals CE, UL, NSF
