Madison Company: M7000

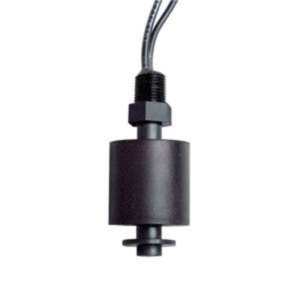

The M7000 miniature liquid level float switch has a PBT stem and a Buna-N float and is a superior choice to basic nylon float switches. The Buna-N float provides better buoyancy and is typically suitable for use in oils, water, aromatic hydrocarbons, diluted acids, and bases. This float switch is ideal for single point float switch level detection when needing to sense a high or low fluid level. The M7000 is not recommended for use in hot water or soap water applications above 149F/65C.

Applicable Industries

• Oil tanks
• Hydraulic oil level detection
• Low or high alarms or shut-off switches

Key Features

• Miniature Single Point Float Level Switch
• Stem Material: PBT
• Float Material: Buna-N
• Mounting: 1/8" NPT
• Max. temperature: 221F/105C
• Max. pressure: 150 psi
• Switch rating: 30 watt, 240V max. (AC/DC), SPST
• Single point float switch level detection when needing to sense a high or low fluid level
• Minimum Media SG 0.56
• Lead Wires 24”, 22 AWG, Teflon Insulated (standard)
• Approvals CE, UL, CSA, FLORIDA DEP EQ682
