Madison Company: M7725

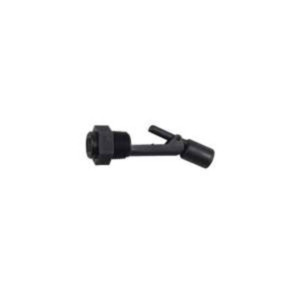

The M7725 side-mounted level switch is constructed out of PBT material providing the unit with a strong structure. This unit is best used for temperature resistance and permeability are not a factor. The strong PBT of the M7725 provides excellent structural integrity. It is best used where temperature resistance and permeability are not factors such as fuel and hydraulic systems up to 266F / 130C. It is not recommended for hot water or soap water applications above 149F / 65C.

Applicable Industries

• Petroleum-based liquids, such as lubricating oils, gasoline and diesel fuels
• Storage tanks of vehicles, generators, transmissions, hydraulic systems
• Fluid recovery, refining and fuel processing switch level indication

Key Features

• Side Mounted Single Point Float Level Switch
• Stem and Float Material: PBT
• Mounting: 1/2" NPT
• Max. temperature: 266F / 130C
• Max. pressure: 100 psi
• Switch rating: 30 watt, 240V max. (AC/DC), SPST
• Electrical Ratings 240V AC, 0.14A; 120V AC, 0.28A 120V DC, 0.07A; 24V DC, 0.28A
• Minimum Media SG 0.94
• Lead Wires 24”, 22 AWG, Teflon insulated
• Approvals CE, UL, CSA
