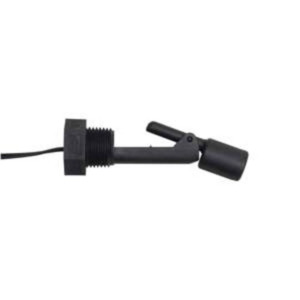

Madison Company: M7750

The M7750 side-mounted level switch is constructed out of PBT material providing the unit with a strong structure. This unit is best used for temperature resistance and permeability are not factor. The M7750 side-mounted liquid level switch has a PBT stem and f loat. PBT is a strong plastic that features excellent structural integrity. It is best used where temperature resistance and permeability are not factors such as fuel and hydraulic systems up to 266F / 130C. The M7750 is not recommended for use in hot water or soap water applications above 149F / 65C.

Applications

• Petroleum-based liquids, such as lubricating oils, gasoline and diesel fuels

Key Features

• Side Mounted Single Point Float Level Switch
• Stem and Float Material: PBT
• Mounting: 1/2" NPT
• Max. temperature: 266F / 130C
• Max. pressure: 100 psi
• Switch rating: 30 watt, 240V max. (AC/DC), SPST
• Electrical Ratings 240V AC, 0.14A; 120V AC, 0.28A 120V DC, 0.07A; 24V DC, 0.28A
• Minimum Media SG 0.94
• Lead Wires 24”, 22 AWG, Teflon insulated
• Approvals CE, UL, CSA
