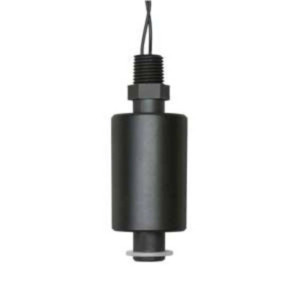

Madison Company: M7800

The M7800 Single Point Level Switch is made with a PBT stem and Buna-N float. Buna-N is suitable for use in oil and water and aromatic hydrocarbons, diluted acids and bases. The M7800 Series is not for use in hot water applications above 65C.

Applicable Industries

• Fuel tanks
• Transmission systems
• Hydraulic systems

Key Features

• Full Size Single Point Float Level Switch
• Stem Material: PBT
• Float Material: Buna-N
• Mounting: 1/4” NPT
• Max. temperature: 221F / 105C
• Max. pressure: 150 psi
• Minimum Media SG 0.56
• Float Diameter 1.25"
• Switch Rating 24”, 22 AWG, Teflon insulated
• Electrical Rating 60 watt, SPST
• Single point float switch level detection when needing to sense a high or low fluid level
• Approvals CE, UL, CSA
