Madison Company: M8600

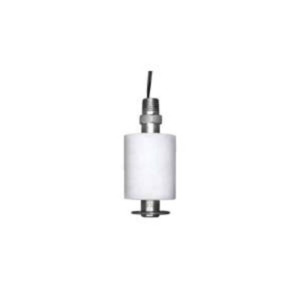

The M8600 Series liquid-level float switch has a stainless steel stem and a polypropylene float. This is a durable choice when a more rigid stem is required to protect the float switch stem from turbulence, aggressive cleaning, or other challenging float switch applications. It is also an excellent option for steamers or food equipment applications.

Applications

• Commercial appliances and equipment
• Food equipment

Key Features

• Full Size Single Point Float Switch
• Stem Material: 316 stainless steel
• Float Material: Polypropylene
• Mounting: 1/4” NPT
• Max. temperature: 221F / 105C
• Max. pressure: 100 psi
• Lead Wires 24”, 22 AWG, Teflon insulated
• Minimum Media SG 0.94
• Float Diameter 1.5”
• Electrical Ratings 240V AC, 0.40A;120V AC, 0.50A 120V DC, 0.20A;24V DC, 0.50A
• Switch Rating 60 watt, SPST
• Approvals CE, UL, CSA, NSF
