Madison Company: M8700

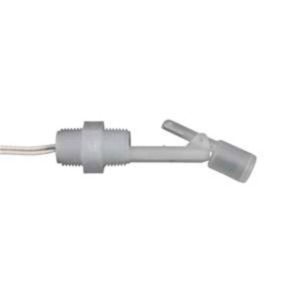

The M8700 side-mounted level switch is constructed with a polypropylene stem and float. The float is hermetically sealed ensuring the switch can provide dependable sensing at a reasonable cost. The side mount M8700 liquid level switch has a polypropylene stem and float. It is designed for liquid level sensing for a wide variety of fluids and conditions. These hermetically sealed float switches provide years of dependable sensing at an economical cost. Used with a standard 1/2” NPT threaded stem, these plastic switches provide control signals for many different liquid level sensor applications. The M8700 can easily be mounted through the wall of a tank as a high or low-level float switch. All wetted materials are NSF grade material and widely used in the food equipment industry.

Applicable Industries

• Food material handling and conveying
• Agriculture
• Marine

Key Features

• Side Mounted Single Point Float Level Switch
• Stem and Float Material: Polypropylene
• Mounting: 1/2” x 1/2” NPT
• Max. temperature: 221F / 105C
• Max. pressure: 100 psi
• Lead Wires 24”, 22 AWG, MTW insulated
• Minimum Media SG 0.63
• Switch Rating 30 watt, SPST
• Electrical Ratings 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A
• Approvals CE, UL, CSA, NSF, FLORIDA DEP EQ682
