Madison Company: M8700-C

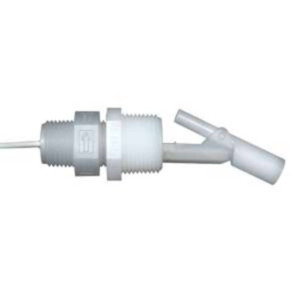

The M8700-C side-mounted level switch is constructed with a polypropylene stem and float. The float is hermetically sealed ensuring the switch can provide dependable sensing at a reasonable cost. The side mount M8700-C liquid level switch has a polypropylene stem and float. It is primarily designed for HVAC condensate levels. These hermetically sealed float switches provide years of dependable sensing at an economical cost.

Applications

• HVAC
• Food material handling and conveying
• Agriculture

Key Features

• Side Mounted Single Point Float Level Switch for HVAC Condensate
• Stem and Float Material: Polypropylene
• Mounting: 3/4” NPT x 1/2” NPT bushing
• Max. temperature: 221F / 105C
• Max. pressure: 100 psi
• Lead Wires 24”, 22 AWG, MTW insulated
• Minimum Media SG 0.63
• Switch Rating 30 watt, SPST
• Electrical Ratings 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A
• Approvals CE, UL, CSA, NSF
