Madison Company: M8790

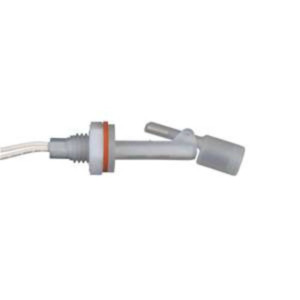

The M8790 Series float switch mounts from the inside of the application, through the wall of the tank. Polypropylene is typically suitable for use with acidic liquids such as those found in electroplating and metal cleaning.

Applications

• Low temperature food processing applications as a single point liquid level float switch
• Steam tables and condensate pans to monitor high/low levels
• Single point low level float switch for pump dry protection

Key Features

• 5/8" Bulkhead Side Mounted Single Point Float Level Switch
• Stem and Float Material: Polypropylene
• Minimum Media SG 0.63
• Mounting: 5/8-11 UNC
• Max. temperature: 221F / 105C
• Max. pressure: 100 psi
• Switch Rating 30 watt, SPST
• Electrical Ratings 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A
• Lead Wires 24”, 22 AWG, MTW insulated
• Approvals CE, UL, CSA, NSF
