Madison Company: M8800

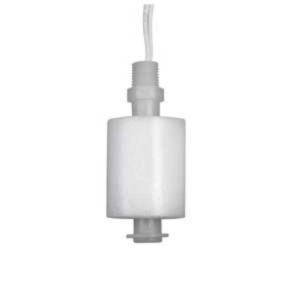

The M8800 Series float switches have a polypropylene stem and f loat. They are designed for liquid level sensing for a wide variety of fluids and conditions. These hermetically sealed float switches provide years of dependable sensing at an economical cost. Used with standard 1/4” NPT threaded stem, these plastic switches provide control signals for many different liquid level sensor applications. Any of our vertical float switches can easily be mounted in the top or bottom of a tank as a High or Low level f loat switch. All wetted materials are NSF grade material and widely used in the food equipment industry.

Applicable Industries

• Marine
• Food equipment

Key Features

• Full Size Single Point Float Level Switch
• Stem and Float Material: Polypropylene
• Mounting: 1/4” NPT
• Max. temperature: 221F / 105C
• Float diameter: 1.5”
• Minimum Media SG 0.96
• Max. pressure: 100 psi
• Switch Rating 60 watt, SPST
• Lead Wires 24”, 22 AWG, MTW insulated
• Electrical Ratings 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A
• Approvals CE, UL, CSA, NSF
