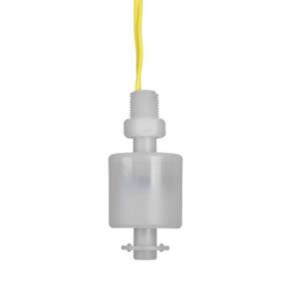

Madison Company: M9000

The M9000 miniature liquid level switch has a Kynar stem and a float. Kynar has chemical and solvent resistant properties, and is ideal for level monitoring where chemical and solvent resistance is required.

Applications

• Food handling
• Medical and laboratory equipment
• Sensitive test equipment

Key Features

• Miniature Single Point Float Level Switch
• Stem and Float Material: Kynar
• Max. temperature: 221F / 105C
• Max. pressure: 25 psi
• Mounting: 1/8” NPT
• Minimum Media SG 0.94
• Float Diameter 1.0"
• Switch rating: 30 watt, SPST
• Lead wires: 24”, 22 AWG, Teflon insulated
• Electrical Ratings 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A
• Approvals CE, UL, NSF
