Madison Company: M9200-NO

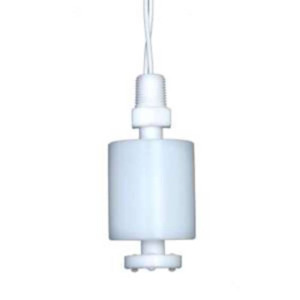

The M9200 Series miniature liquid level float switches have a Teflon stem and float, and are ideal for single point level control. This float switch is well suited for corrosive environments and is resistant to the build-up of foreign material and sticky fluids. Can be easily extended with standard pipe fittings to different levels.

Applications

• Sticky fluids
• Chemical processing
• Corrosive fluids
• High purity

Key Features

• Miniature Single Point Float Level Switch (Normally Open)
• Stem and Float Material: Teflon
• Max. temperature: 300F / 150C
• Max. pressure: 25 psi @ 70F
• Mounting: 1/8” NPT
• Minimum Media SG 0.86
• Switch rating: 60 watt, 240V max, AC/DC, SPST
• Lead wires: 24”, 22 AWG, Teflon insulated
• Electrical Ratings 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A
• Approvals CE
