Madison Company: MS5010

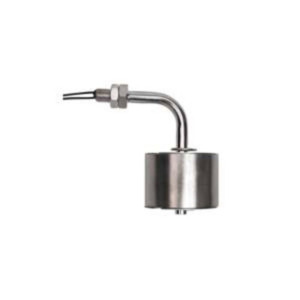

The MS5010 side mount liquid level switch has a stainless steel stem and float and is equipped with a slosh shield. A slosh shield should be considered if your operating environment contains intensive agitation of the liquid, boiling fluids, or surging due to large inflows and outflows of liquid. Madison Company can also manufacture custom bent stem float switch lengths for your OEM application.

Applications

• Corrosive environments
• Medical
• Food processing
• Heating and Cooling

Key Features

• Miniature Side Mount Single Point Float Level Switch with Slosh Shield
• Stem & Float Material: 316 stainless steel
• Fitting type: 3/8-24 UNF
• Float Diameter 1.9"
• Minimum Media SG 0.91
• Max. temperature: 392F / 200C
• Max. pressure: 300 psi
• Switch rating: 30 watt, SPST
• Lead Wires 24", 22 AWG, Teflon Insulated (standard)
• Electrical Ratings 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A
• Approvals CE, UL, CSA
