Madison Company: M4410

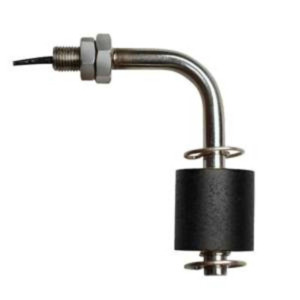

The M4410 side-mounted liquid-level float switch has a stainless steel stem and Buna N float. These switches easily mount into a drilled through-hole for bulkhead mounting. It can be side mounted with the float 90Degabove or below the through-hole. Madison Company can also manufacture custom bent stem float switch lengths for your OEM application.

Applications

• Corrosive environments
• Food processing
• Medical
• Heating and Cooling

Key Features

• Miniature Side Mount Single Point Float Level Switch with Bent Stem
• Float Material: Buna-N
• Stem Material: 316 stainless steel
• Fitting type: 3/8-24 UNF
• Float Diameter 1.0"
• Minimum Media SG 0.56
• Lead Wires: 24”, 22 AWG, Teflon insulated
• Max. temperature: 221F / 105C
• Max. pressure: 150 psi
• Switch rating: 30 watt, SPST
• Electrical Ratings 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A
• Approvals CE
