Madison Company: M4010

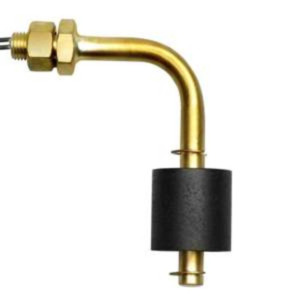

The M4010 side-mounted liquid-level float switch is made up of a brass stem and Buna-N float. The design of the switch allows mounting to be 90Deg above or below the through-hole.

Applications

• Single point detection of high/low levels through side wall of tank
• Stem diameter of 0.313” and float diameter of 1.0”
• Materials typically used for hydrocarbon-based liquids

Key Features

• Miniature 90 Side Mount Single Point Float Level Switch
• Float Material: Buna-N
• Stem Material: Brass
• Fitting type: 3/8-24 UNF
• Float Diameter 1.00"
• Minimum Media SG 0.56
• Lead Wires: 24”, 22 AWG, Teflon insulated
• Max. temperature: 221F / 105C
• Max. pressure: 150 psi
• Switch rating: 30 watt, SPST
• Electrical Ratings 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A
• Approvals CE
