• Kit adds voltage detector and professional 8-piece test-lead set to the standard EX505A
• True RMS multimeter
• CAT IV-600 electrical safety rating
• 1000 V input protection on all functions
• Measure up to 1000 V AC V/DC V plus AC A, DC A, resistance, capacitance, frequency, duty cycle, temperature, diode, and continuity
• Waterproof and dustproof (IP67-rating)

The EX505A heavy duty true RMS industrial multimeter measures AC/DC voltage, current, resistance, and capacitance. It features dual sensitivity frequency (electric 1 kHz/electronic 10 MHz), a type K thermocouple -20°C to 760°C (-4°F to 1400°F), and a bead wire temperature probe -20°C to 250°C (-4°F to 482°F). It also features a 6000-count backlit LCD screen, 0.5% basic accuracy, relative/data hold, and an auto power function. With a CAT IV-600 V safety rating and an IP67 rating for water and dust, the EX505A is an ideal tool for electricians, HVAC technicians and benchtop technicians who require accuracy, durability, and safety in their electrical testing equipment.

Voltage Detector and Test Set Included with Kit

• This kit adds a voltage detector and test lead set to the standard EX505A product
• Voltage detector has 24-volt and 1000-volt ranges
• Voltage detector features audible and visual indicators
• Test lead set includes leads, probes, and clips

Several versions of Extech EX500A series multimeters are available. The table below highlights some of the key differences. Please see the attached datasheet for more details.
Each of the products in the table has a basic variant and a NIST calibrated variant. See the Items in this Series section of this webpage for more details.

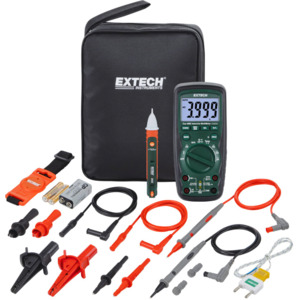

In The Box

• Multimeter
• Test leads
• Non-contact voltage detector
• 8-piece test lead kit
• Magnetic hanging strap
• Type K bead wire temperature probe
• Carrying case
• 9 V battery
