Rohde & Schwarz MXO5C Series: MXO5C-B1 Mixed Signal Option

Features and Specifications:

• (MSO) License Key: Includes 2x MSO Logic Probes that enable MSO function on the MXO

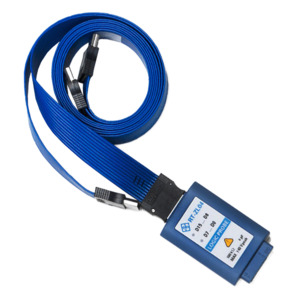

• Mixed signal capability is a standard functionality of the MXO 5C Series. This option provides 16 digital channels with two R&S RT-ZL04 probes.
• Digital channels, available with the R&S MXO5C-B1 option, are tailored for precisely analyzing low-speed serial protocols such as SPI and I2C. Use analog or logic channels as sources for protocol trigger and decode with the serial bus options. By focusing on protocol details like start, address and data, gain deep insights into serial bus events. From built-in logic analysis to highresolution signal capture and low-speed serial bus analysis.
