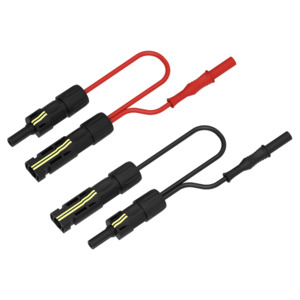

The CT4504 is a set of MC4 breakout to MC4 extension with 4 mm sheathed banana plug leads. The breakout feature provides a safe and reliable method of measuring the operating voltage (Vop) and operating current (Iop) of solar panels. With Cal Test’s new breakout leads, the user can easily insert a measurement instrument between photovoltaic modules. The double insulated PVC wire is both flexible and durable to enhance user convenience.

Obtain a convenient measurement solution by using this set of CT4488 and CT4489 test leads. The CT4489 comes standard with red test lead wire, and the CT4488 comes standard with black test lead wire for easy identification.

These new leads can be used with the CT4491, MC4 extension lead, whenever additional lead length is required. (Optional Accessory).

Available individually, as a pair, or in a kit.

Photovoltaic Test Lead Set Includes:
CT4488-30-100-0 [MC4 Female Breakout MC4 Male (30 cm), 4 mm Sheathed Plug (100 cm), black]
CT4489-30-100-2 [MC4 Male Breakout MC4 Female (30 cm), 4 mm Sheathed Plug (100 cm), red]

Features:

• Test lead set for PV testing and maintenance
• IEC 61010-031 Safety rated
• MC4 breakout connection (MC4 / 4 mm sheathed plug)
• Double insulated PVC wire
• Contact material: BeCu, AuNi plated
• CE Mark
• RoHS 2 Compliant
