FLUKE-283FC/PV Solar Kit: Multimeter, AC/DC Current Clamp, Leads, 283 FC Series

Multimeter Features and Specifications

• 1500 VAC / 1000 VDC Digital Multimeter.
• Current measurements up to 60 A AC/DC for safely troubleshooting individual strings of modules with greater accuracy*
  (*when using a283 FC wireless current clamp).
• Measure voltage and current at the same time and automatically calculate VA Power when used with the a283 FC clamp meter
• Visual and audio polarity indicators with on/off function help prevent accidental module wiring issues.
• User-defined limit gauge helps you make quick go/no-go troubleshooting decisions.
• Integrated multimeter readiness selfcheck:
  Get insights to the status of the meter’s calibration, battery life availability, test lead functionality, and AC/DC voltage measurement functionality.
• Logging and saving measurements to internal memory or Fluke Connect to perform later detailed analysis.

Safeguard Functions

• AC/DC volts, AC/DC mV, AC/DC VA, Continuity, Resistance, Capacitance, AC/DC amps, Hz, visual and audio polarity, user-defined limit gauge and meter readiness self-check.

Convenience and Safety for Solar Professionals

Streamline troubleshooting with the Fluke 283 FC Digital Multimeter's (DMM) user-defined limit gauge setting, which allows you to quickly identify measurement deviations or errors, and assists in maintaining optimum performance.

It also redefines standards for technicians working in DC environments up to 1500 V. It is designed to enhance safety and productivity, providing accurate, reliable, and consistent results, whether used with utility-scale solar PV arrays, wind power, electric railways, or data centers.

CAT III 1500 V/CAT IV 1000 V Safety Rated

CAT III 1500 V DC systems have become standard in utility-scale PV systems, offering significant cost savings and efficiency improvements. These systems operate at higher voltages, allowing each inverter to manage more energy, support longer strings of connected panels, and reduce the need for additional wiring and inverters. Consequently, standard CAT IV inverter outputs of 800 V AC or higher are more common, emphasizing the importance of safety and accuracy in measurements.

User-Defined Limit Gauge

For large-scale PV projects requiring repetitive measurements and consistent results, the user-defined limit gauge is an essential time-saving tool. This adjustable gauge provides audio and visual alerts when measurements fall outside the expected range, enabling quick evaluation of results, boosting confidence in system performance, and identifying potential issues.

The dedicated limit gauge button allows easy toggling of warnings, setting new measurement parameters, or selecting from previously used profiles. This customization simplifies troubleshooting, quickly identifying deviations or errors, and helps maintain optimal solar installation performance.

FLUKE-283FC Panel Features

Meter Clamp Features and Specifications

• Wireless connectivity allows for convenient transmission of measurements.
• Automatically calculate VA power.
• View more than one measurement at a time allowing you to monitor additional parameters like DC amperage or voltage.
• Convenient logging and saving features.
• Built-in real-time clock: each measurement can be time- and date-stamped for accurate recordkeeping.

Wireless Current Clamp

The a283 FC True-RMS wireless current clamp is engineered to streamline troubleshooting while maintaining safety and reliability. It measures both AC and DC currents up to 60 A, providing accurate and dependable readings for various applications such as solar installations, electrical systems, and industrial equipment.

Its non-contact design ensures safe connections without touching live wires, allowing you to close the clamp in a cabinet and take measurements from a safe distance. It has a safety rating of CAT III 1500 V and CAT IV 1000 V, aligning with the 283 FC's safety standards.

Clamp Break-out Features

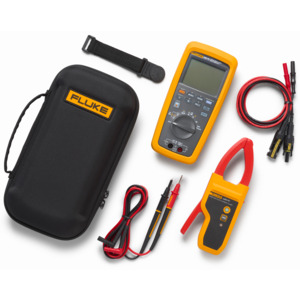

What's in the Box

• FLUKE-283FC/PV Solar Kit:
  • 283 FC TRMS Wireless Digital Multimeter
  • a283 FC 60A TRMS Wireless
  • AC/DC Current Clamp
  • Solar MC4 test Lead set
  • TL175-HV TwistGuard Silicone test leads
  • Premium carrying case
  • TPAK magnetic hanging strap
  • Limited Lifetime Warranty on the Multimeter
  • 1-year warranty on the clamp
