Fluke Networks DSX2-8000OI Versiv Data Center Fiber, Copper Troubleshooting Kit w/Wi-Fi

The DSX2-8000OI kit enables you to measure performance and isolate issues in copper and fiber connections (both single-mode and multimode) using the DSX CableAnalyzer and modules. It also supports inspection and cleaning of MPO and single-fiber endfaces. Additionally, the kit includes a live fiber detector—a pocket-sized tool designed to test single-mode and multimode UPC/APC patch cords and ports using a non-contact, non-contaminating method. Many accessories further round out the kit.

Accomplish More Than Ever

The DSX CableAnalyzer delivers precise, reliable certification results. In the cabling installation industry—where teams, media types, and testing requirements vary—the margin between profit and loss can be razor-thin. This tool certifies copper cabling to all relevant standards, including Level VI/2G accuracy, streamlining project management and accelerating system approval. It’s designed for more than just seasoned technicians and project managers; users of all experience levels can enhance setup, testing, reporting, and oversee multiple projects with greater efficiency. With the DSX CableAnalyer and Versiv, you’ll save money every time you use it.

Features:

• Enables cable testing and certification for network deployments up to 40 Gigabit Ethernet – whether it is an existing Cat 5e, 6, 6A, 8 or Class I/II cabling system, the DSX tests to all industry standards.
• Supports balance measurements including Transverse Conversion Loss (TCL) and Equal Level Transverse Conversion Transfer Loss (ELTCTL)
• Complete copper certification to Cat 6A in 8 seconds or certify two fibers at two wavelengths in just 3 seconds.
• Quickly get a Pass or Fail result and easily review individual test parameters by value or drill into specific area on a graph.
• Graphically displays the source of failures including crosstalk and distance to shield faults for faster troubleshooting.
• Taptive User Interface Simplifies Set Up, Eliminates Errors and Speeds Troubleshooting.
• ProjX management system simplifies project setup by storing all job-specific details under a single name, reducing errors and file loss across jobs and testers.
• LinkWare Live cloud service lets the Project Manager remotely set up the testers, monitor job progress and even locate tester from any smart device.
• Capacitive touchscreen allows quick tester setup and supports all standards.
• Capable of certifying MPTL by using patch cord and permanent link adapters.
• Meets Intertek (ETL) verification in accordance with the ANSI/TIA-1152-A specification for Level 2G test equipment.

Technical Specifications:

• Cat 6A / Class EA test time: 8 seconds
• Cat 8 / Class I/II test time: 16 seconds
• HDTDX/HDTDR diagnostic test times: 3 seconds
• Internal memory: 5,000 Cat 8 with plots; 12,000 Cat 6A with plots
• Allows the following characteristics:
  • Greater than Level V Accuracy (1 GHz)
  • Level VI/2G Accuracy (2 GHz)
  • Resistance Unbalance measurement
  • Shield integrity check and distance to fault
  • TCL measurement
  • ELTCTL measurement
  • CDNEXT measurement
  • CMRL measurement
  • Built-in Alien XTalk capability
• Channel Adapter: 2 GHz Range
• Permanent Link Adapter: 2 GHz Range

DSX CableAnalyzer Series Family

The DSX CableAnalyzer Series is the copper certification solution of the Versiv cabling certification product family. The Series is based on two modules: the DSX2-5000 and DSX2-8000. The DSX2-5000 certifies twisted pair Cat 5e, 6, 6A and Class FA cabling with limits up to 1000 MHz. The DSX2-8000 certifies twisted pair Cat 5e, 6, 6A, Cat 8 and Class I/II cabling with limits up to 2000 MHz.

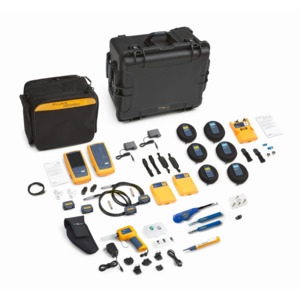

What's in the Box

• DSX2-8000 Versiv Mainframe & Remote
• (2) DSX-8000 CableAnalyzer Modules
• Set of Cat 8/Class I Permanent Link Adapters
• Set of Cat 8/Class I Channel Adapters
• (2) Headsets
• (2) HandStrap
• (2) Shoulder Straps
• Carry Case
• USB Interface Cable
• (2) AC Chargers
• (2) Universal Couplers
• (2) AxTalk Terminators
• OptiFiber Pro Quad OTDR Module
• (3) SC/LC Multimode Launch Cables - 50 µm
• (3) SC/LC Single-mode Launch Cable - 9 µm
• (2) OTDR source port interchangeable LC adapters
• SC/SC Simplex Adaptor
• LC/LC Simplex Adaptor
• (2) Launch Fiber Hanging straps and magnets
• FI-3000 FiberInspector Ultra camera
• Tip Set (12/24 UPC, 12/24 APC and Keyless APC 12/24, 16/32)
• Single Fiber Adapter for FI-1000 tips
• FC/SC Bulkhead tip
• 2.5mm Universal tip
• 1.25mm Universal tip
• LC bulkhead tip
• AC charger
• Holster
• QuickClean cleaners for QC-MPO-12/2, 1.25 and 2.25 ferrule connectors / ports
• FiberLert Live Fiber Detector (850-1625 nm), Integrated Wi-Fi
• Hard-side transit case
• Statement of Calibration and Getting Started Guide
