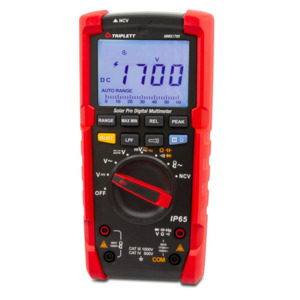

Triplett MMS1700 Solar Pro Digital Multimeter

Features and Specifications

• Display counts: 6000 count with analog bargraph
• Basic Accuracy: ±0.2%
• AC Voltage: 1500V
• DC Voltage: 1700V
• Resistance: 60MΩ
• Capacitance: 60mF
• Frequency: 1MHz
• Continuity: Less than 10Ω
• Lo Pass Filter (LPF): Yes
• NCV Detector: 40 - 600V (50/60Hz)
• Clamp Adapter Input:30A, 300A, 3000A
  3000A Clamp Adapter input can be used with any adapter that has a 10mV/A output
• Safety Category: CAT IV-600V
• Built-in Flashlight: Yes

Overview of the MMS1700

The Triplett MMS1700 Solar Pro Digital Multimeter (DMM) is engineered for installation and maintenance in high-voltage photovoltaic systems, capable of measuring up to 1500VAC and 1700VDC. It’s also suitable for energy storage systems, UPS units, large motors, and other high-voltage environments. In addition, it measures resistance, capacitance, frequency, diode, and continuity.

The 3000A clamp adapter input works with any adapter featuring a 10mV/A output. True RMS ensures accurate readings for non-sinusoidal or noisy waveforms.

Other key features include microamp current measurement, a low-pass filter (LPF), NCV detection, data hold, relative mode, Min/Max and Peak (less than 1ms) Min/Max. Auto power-off with disable helps conserve battery life, and a built-in flashlight provides visibility in dimly lit areas.

What's in the Box

• MMS1700 Digital Multimeter
• Test leads
• 9V battery

*NOTE: Clamp not included.
