D9010JITA R-B5P-004-D R-B6P-004-L Jitter, Vertical and Phase Noise Analysis Software

Configurations:

• (R-B5P-004-D) Transportable perpetual license
• (R-B6P-004-L) KeysightCare software support subscription, transportable - 12 months

This software helps you perform jitter, vertical, and phase noise analysis with Keysight's Infiniium 9000, S-Series, EXR-Series, MXR-Series oscilloscopes.

Jitter Analysis:

• Automatic setup wizard for creating jitter histograms, trends, and spectrums
• Automatic setup wizard for RJ/DJ separation via multiple algorithms, pattern lengths, BER levels
• Multiple clock recovery methods
• Calibration to remove RJ from oscilloscope
• Composite histograms and graphs of separated RJ, PJ, DJ, DDJ, DCD and ISI jitter subcomponents

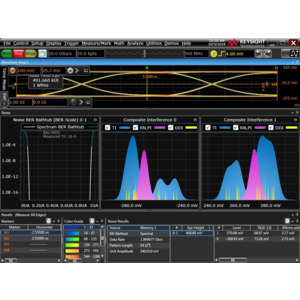

• Composite histograms and graphs of separated TI, DDI, PI, ISI noise subcomponents
• Spectral and noise BER bathtubs

Phase Noise Analysis:

• Single Side Band (SSB) phase noise plots as log frequency vs. dBc/Hz
• Two channels and cross-correlation to reduce broadband measurement noise
• Differential clocks with reduced broadband measurement noise
• Spread-spectrum modulated clocks
• Broadband noise (RJ) reduction in cross-correlated time interval error (TIE) measurements
• Integrated jitter measurements between two frequencies on phase noise plot
• In circuit with InfiniiMax probes

Time correlation of jitter to the real-time signal helps you easily trace jitter components to their sources. Additional compliance views and a measurement setup wizard now simplify and automate RJ/DJ separation for testing against industry standards.

This software automatically detects embedded clock frequencies and repetitive patterns of the data on the oscilloscope inputs and calculates the level of data-dependent jitter (DDJ) that is contributed to the total jitter (TJ) PDF by each transition in the pattern. It also comes with both spectral and tail-fit jitter separation algorithm. Since every waveform is different, multiple jitter separation solutions give you better answers for each individual waveform. Use the new tail-fit algorithm to properly identify and measure aperiodic bounded uncorrelated jitter, which is especially useful if the waveform is being influenced by cross-talk.

The Phase Noise analysis feature measures phase noise in a clock source. Get measurement results presented in a log frequency plot where the amplitude units are listed in units of dBc/Hz (decibels relative to the carrier power normalized to a 1 Hz bandwidth).
