Keithley SHV-CA-553-3 Shv To Hv Triax Cable, 3 M, Male To Male

• High-Voltage Triaxial to SHV Cable
• Cable length: 6.6 ft (2.0 m)
• Rated voltage: 3300 V
• Rated amperage: 2.0 A
• Center/guard to shield: 5250 V

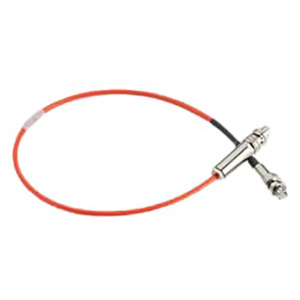

The Model SHV-CA-553-3 is a high-voltage triaxial cable assembly. This cable assembly is terminated on one end with a female safe high-voltage (SHV) connector. The other end is terminated with a male high-voltage (HV) triaxial connector.

Note: With the Model 2657A System SourceMeter Instrument, the voltage between the Guard and HI (inner shield and center conductor) will typically be less than 1 V under steady-state conditions. This results in much lower leakage current between the inner shield of the cable and the center conductor.
