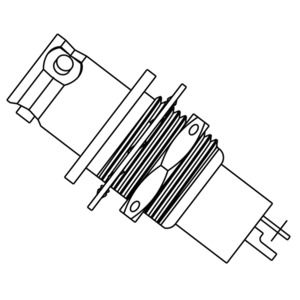

3-SLOT 1100V TRIAX FEMALE BULKHEAD CONNECTOR

• 3-slot female-bulkhead adapter rated for 1100 V
• The female connector of this adapter will only mate with 3-slot male triaxial connectors (Keithley part number TRX-1100V-CONN) and cables (Keithley part number TRX-1100V-*) that meet the safety standards for spacing
• Can be used in applications that use the Keithley Instruments Model 2470 High Voltage Source Meter® Instrument
• It is intended for instrument testing that requires high voltage and high throughput combined with DC measurement capability and broad testing flexibility
• Materials: Brass with nickel plated body, Beryllium copper with gold and nickel-plated center conductor, Brass with gold and nickel-plated inner shield, Teflon insulators, Brass with nickel plated body hex nut, Brass with nickel plated phosphor bronze lock washer
• Voltage rating: Center contact to inner shield: 707 V dc; Center contact and inner shield to outer shell: 1500 V dc
• Contact resistance: Center contact: 2.0 mΩ; Inner shield: 1.0 mΩ; Outer shell: 0.5 mΩ
• Insulation resistance: Center to guard: 1 x 1014 Ω; Guard to shell: 1 x 1012 Ω

The Keithley Instruments TRX-1100V-TBC is a 3-slot female-bulkhead adapter rated for 1100 V. The female connector of this adapter will only mate with 3-slot male triaxial connectors (Keithley part number TRX-1100V-CONN) and cables (Keithley part number TRX-1100V-*) that meet the safety standards for spacing.

This connector can be used in applications that use the Keithley Instruments Model 2470 High Voltage Source Meter Instrument. It is intended for instrument testing that requires high voltage and high throughput combined with DC measurement capability and broad testing flexibility.
