PW9253A/SW1000-LIC-01/SW1000-SUP-01 - Pathwave Advanced Battery Test And Emulation

Configurations Include:

• Node-Locked Perpetual License*
• (SW1000-LIC-01) License duration, 12 months (can be used indefinitely and is renewable)
• (SW1000-SUP-01) Support, 12 months (user-selected start and end dates)

KeysightCare Node-Locked Software Support Subscription Provides:

• Ensure your software is always current with the latest enhancements and measurement standards.
• Gain additional insight into your measurement problems with live access to Keysight's team of technical experts.
• Stay on schedule with fast turnaround times and priority escalations when you need support.

PW9253A Enables the Following:

• Analyze how your device consumes power.
• Simulate actual battery performance and behavior.
• Import existing battery model data from CSV files.
• Test and emulate batteries up to 200 kW and 2 kV.
• Profile batteries through charge / discharge cycles to create a unique battery model.

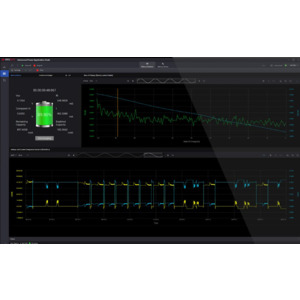

PathWave Advanced Power Control and Analysis Overview

Keysight's PW9253A is an advanced software tool designed to provide higher accuracy, repeatability, and safety by using emulation based on a unique battery model. It enables you to analyze your device's power consumption, emulates real batteries, and imports existing battery models for testing. The software supports up to 10 instruments concurrently, enabling comprehensive and scalable testing solutions.

In addition to its powerful analysis and emulation capabilities, the PW9253A integrates with Keysight’s advanced two-quadrant product families, supporting a wide range of applications from low to high power levels across various industries such as consumer electronics, medical devices, e-mobility, residential energy storage, and automotive. For the RP7900 Series, it supports operationing in primary/secondary mode, facilitating easy configuration of parallel units for increased output current and power.

Supported Models: N6705A, N6705B, N6705C, N6700C, N6701C, N6702C N6781A, N6782A, N6784A, N6785A, N6786A N7950A, N7951A, N7952A, N7953A, N7954A, N7970A, N7971A, N7972A, N7973A, N7974A, N7976A, N7977A, N7953ALG, RP7951A, RP7952A, RP7953A, RP7961A, RP7962A, RP7963A, RP7951AT, RP7952AT, RP7953AT, RP7961AT, RP7962AT, RP7963AT, RP7931A, RP7932A, RP7933A, RP7935A, RP7936A, RP7941A, RP7942A, RP7943A, RP7945A, RP7946A, RP7972A, RP7973A, RP7982A, RP7983A, RP7984A 34970A, 34972A, DAQ970A, DAQ973A E36731A

---

*Types and Terms

Node-locked: This type of license is locked to a specific host instrument or PC, and only allows use of the product on this host. Use node-locked licenses when your product only needs to be used with a single instrument or PC. It provides the most cost-effective alternative for single-use situations.

Perpetual: This term of license usage allows you to use the product indefinitely. Perpetual licenses include software updates and support for a time period of between 12 to 60 months or with user-selected start and end dates. Use perpetual licenses when you will need to use the product for an extended period of time (e.g. many years) and you may not need updates and support after the initial time period.
