• Same wire as used with the Pomona test leads and patch cords
• Make your own “Extra Long” test leads, jumpers or patch cords
• Fits Pomona “Do-It-Yourself” banana plugs and jacks
• High temperature and voltage ratings
• Silicone insulation with high wire strand count allows for superb flexibility
• Wear indication with double insulated (dual extruded) silicone leads shows white inner layer for increased safety
• Wire will comply with International Safety Standard CAT III, IEC61010-031 requirements when correctly terminated with other components designed to meet CAT III, IEC61010-031 requirements

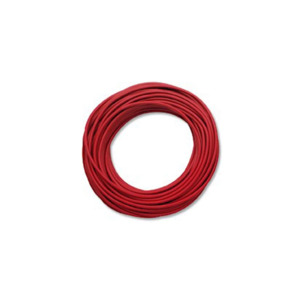

6733-2 Silicone Test Lead Wire

Highlights:

• PVC Insulation
• Current 20 A / 15 A
• Length 50 Ft (15.2 meters)
• Wire Size 18 AWG
• Wire Rated Voltage 10,000 DC*
• Temperature -58 to +302F (-50 to +150C)
• Wire 192 X 41 bare copper
• Diameter (OD) .144" (3,60mm)

*Hands free testing in controlled voltage environment: For CE compliance: not intended for hand held use at voltages above 30 Vrms /42.2 Vpk / 60 Vdc or when current exceeds 8A maximum.
