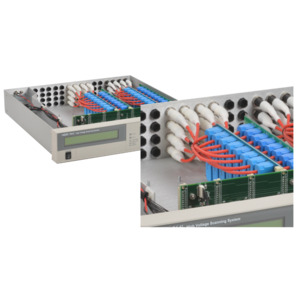

LV Series Relay Boards Specs

Max Voltage:

• Between any two connections: 3KVDC 2KVAC
• Between any connection and ground: 5KVDC 3KVAC
• Frequency: <500Hz; Carrying Current: Switching Power: Switching Time: Expected Life: <1mA, Contact Resistance: At terminals, <50 percent expected life operations (add 0.05 Ohm for <100 percent life) <0.175 Ohm (uncompensated), <0.05 Ohm (compensated), <+/-0.075 Ohm difference between lowest and highest
• Leakage Resistance: Any individual connection to ground: >1GOhm at 200MOhm at 1GOhm at <30C; Leakage Capacitance: Any individual connection to ground: 15pF (typical); Common connection to ground: 50pF (typical); Between any two connections: 10pF (typical)
• Thermal EMF: <200uV. Coil Power: Holding closed: 0.12W (typical), Closing: .5W for 5ms (typical)
