Fluke v3000 FC Wireless AC Voltage Module
Features and Specifications
- Measure up to 1000 V True-RMS AC
- se as a standalone meter or as part of the system
- Memory Record up to 65000 readings
- LCD w/backlight 3.5 digits, 6000 counts, updates 4/sec
- RF communications 2.4 GHZ ISM Band
- RF communication range Open air, unobstructed Up to 20 m
- Safety rating CAT IV 600 V, CAT III 1000 V
Relays Measurements to These Fluke Connect Enabled Units
- Fluke 3000 FC DMM
- Fluke Ti200/300/400 Infrared Camera
- PC via optional pc3000 FC Adapter
- Fluke Connect Mobile app
The Fluke v3000 FC Wireless AC Voltage Module (FLK-V3000FC) is part of a suite of wireless testing tools that allow you to share test data via the Fluke Connect app, complete with ShareLive video calls.
These tools from Fluke Connect are designed to be placed near live open electrical panels,or moving/hazardous machinery, keeping you at a safe distance. Simply connect the v3000 FC wireless AC voltage module or any other Fluke Connect remote modules and view the results on the Fluke Connect Wireless Multimeter or a portable PC. Think of it as another layer of protection to add to your Personal protective equipment (PPE). It's simple to set up, open the panel while wearing PPE and connect one or more v3000 FC modules. Close the cabinet, re-energize and let the Fluke Connect system work, reducing the risk of arc flash by separating yourself from hazardous measurement situations.
What's more, these Fluke Connect testing tools have the ability to transmit measurement data to your smartphone. This feature enables you to save and distribute field measurements to your team, no matter where you are.
Testing 3-Phase Measurements - Faster, Cheaper Plus You Can Log and Diagnose
When your cabinet is de-energized, attach a Fluke Connect voltage module to each phase. Close, re-energize and start taking readings. What used to take hours and use costly equipment can be done in minutes with an affordable Fluke Connect wireless system.
You can solve problems faster by seeing live measurements from multiple test points on a single screen. Using v3000 FC AC voltage modules, you can:
- Take 3-phase measurements in 1/3 the time of previous methods.
- Send data to your laptop and go from logging to analysis and diagnosis.
- Record over time to monitor circuit load changes for an hour, a shift or a week.
- Use the Fluke Connect wireless USB adapter to collect logged data from remote modules by walking past a working module and downloading logged data.
- Perform for analysis with your PC and share the results using Fluke Cloud storage and ShareLive video call. View data or graphs to get input from team members.

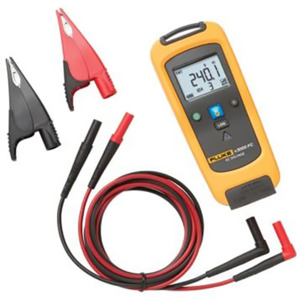

What's in the Box
- FLK-V3000FC Voltage Module
- TL224 Test Leads
- AC285 Alligator Clips
- Magnetic hanging strap
