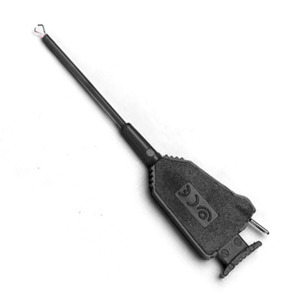

Pomona 72906-0 Miniature SMD Grabber Test Clip, 1 A, 70 V, Black, 72906 Series
Our Part #34071.1
Mfr Part #72906-0
Pomona
Pomona 72906-0 Miniature SMD Grabber Test Clip, 1 A, 70 V, Black, 72906 Series
Our Part #34071.1
Condition:New
Mfr Part #72906-0
$17.99EACH
- Description
- Specifications
- Documents
- Designed for easy attachment to SMD chips with pitches down to 0.032” (0.80 mm)
- Insulated shaft can be bent up to 36 degrees for versatile attachment in awkward locations or close proximity to other clips
- Rotating jaws increase versatility in connection and stacking.
- Thin (3mm) profile allows close placement to adjacent clips.
- Compatible with leads with Ø0.8 mm female connectors
- Max Resistance is Less than 15 mΩ
- Jaws are made of Steel
- Order Pomona model number 72905-0 for clip lead for SMD Mini Grabber - 0.8mm female/4 mm female for easy attachment to standard test leads.
Brand: Pomona
Series: 72906 Series
Color: Black
Current: 1 A
Insulation: Polyamide
Maximum Temperature: 176°F
Voltage Rating: 70 V
