Pomona

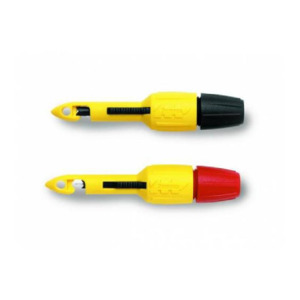

Pomona 6405/POM Insulation Piercing Clip Set, 70 V, 1 A, Black/Red
Our Part #34596.1
Mfr Part #6405/POM
Pomona
Pomona 6405/POM Insulation Piercing Clip Set, 70 V, 1 A, Black/Red
Our Part #34596.1
Condition:New
Mfr Part #6405/POM
$EACH
- Description
- Specifications
- Documents
- Make contact with insulated wires without cutting or stripping insulation.
- Spring loaded double “V” clamp holds wire centered for piercing needle.
- Pierces insulation on wires from 22 to 14 AWG (0.030” through 0.180” diameter).
- Tiny hole left in insulation can easily be sealed.
- High visibility bright yellow body.
- 6405 mates with standard .16” (4mm) banana plug test leads, with or without safety shroud (e.g. 5907A or “B” series patch cords).
- 6413 mates with standard .080” (2mm) standard pin tip test probe (e.g. 5519A).
- Red or black color-coded cap for easy identification.
- Rotating banana jack will not twist test lead while the needle is screwed into wire.
- Piercing Tip material is hardened stainless steel
- Jack material is Brass
Brand: Pomona
Color: Black, Red
Current: 1 A
Insulation: Nylon Red or Black caps w/High Visibility Yellow Nylon
Material: Steel
Voltage Rating: 70 V
Wire Size AWG: 22-14 AWG
