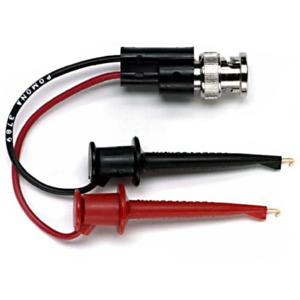

Pomona 3789 BNC (M) To Minigrabber Test Clip, 300 V, 20 AWG, Black/Red
Our Part #34605.1
Condition:New
Mfr Part #3789
$29.86Each-EA
- Description
- Specifications
- Documents
- Minigrabber® test clip hooks attach to terminal sizes up to .060” diameter
- Converts BNC (Female) jacks to Minigrabber test clips for test versatility
- BNC connector and Minigrabber test clip caps are molded directly onto the wire for pull strength durability and dust and moisture resistance
- Grabber hook and BNC center contact are Gold-plated Beryllium Copper for optimum strength, excellent corrosion resistance and low contact resistance to ensure test signal integrity
- Schematic: Black Minigrabber test clip to BNC shell, red Minigrabber test clip to BNC center contact
- BNC Insulation is polypropylene and Minigrabber Insulation is Glass filled nylon
- Center Contact material is Brass and the finish is Gold-plated
Brand: Pomona
Color: Black, Red
Contact Finish: Gold Plated
Contact Material: Beryllium Copper
Finish: Nickel Plated
Material: Brass
Maximum Temperature: 131°F
Voltage Rating: 300 V
Wire Material: PVC
Wire Size: 20 AWG
$29.86Each-EA
