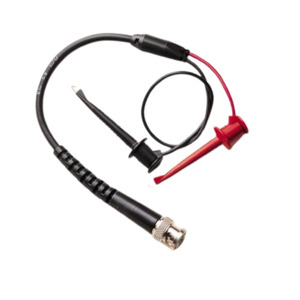

Pomona 5187-C-48 BNC (M) To Minigrabber Test Clip, RG58C/U, 48" Long, 300 V, Black/Red, 5187 Series
Our Part #34635.1
Mfr Part #5187-C-48
Pomona
Pomona 5187-C-48 BNC (M) To Minigrabber Test Clip, RG58C/U, 48" Long, 300 V, Black/Red, 5187 Series
Our Part #34635.1
Condition:New
Mfr Part #5187-C-48
$34.99EACH
- Description
- Specifications
- Documents
- BNC Cable breakouts to Minigrabber® Test Clips for test versatility.
- BNC connector and breakout wires are molded directly to the cable for added pull strength.
- Grabber hook attaches to terminal sizes up to .060” (1,5mm)
- Schematic: Black Grabber to BNC Shell, Red Grabber to BNC Center Contact
- The Center Pin Material is Brass and the finish is Gold Plated.
Brand: Pomona
Series: 5187 Series
Cable Length: 48"
Cable Type: RG58C/U
Color: Black, Red
Contact Finish: Gold Plated
Contact Material: Beryllium Copper
Finish: Nickel Plated
Impedance: 50 Ω
Insulation Material: Glass filled Nylon
Material: Stainless Steel/Brass
Maximum Temperature: 122°F
Voltage Rating: 300 V
Wire Material: PVC
Wire Size: 20 AWG
