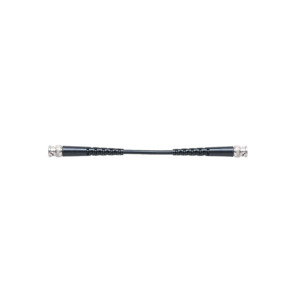

Pomona 2249-K-48 Cable Assembly w/BNC (M), RG174/U, 50 Ohms, 48” Long, 2249 Series
Our Part #34768.1
Condition:New
Mfr Part #2249-K-48
$47.37Each-EA
- Description
- Specifications
- Documents
- The molded strain relief is directly bonded to the cable jacket for superior strength and durability.
- PTFE insulation and nickel tarnish resistant outer shells used in the BNC connector provide long life and reliability.
- Gold-plated center contacts assure the most noise free connection possible.
- The connectors and cable are impedance matched.
Brand: Pomona
Series: 2249 Series
Cable Diameter: 0.110"
Cable Length: 48"
Cable Type: RG174/U
Capacitance: 30.8pF
Contact Finish: Gold Plated
Contact Material: Brass
Finish: Tarnish Resistant Nickel Plated
Impedance: 50 Ω
Jacket Material: Polyvinyl Chloride Non-Contaminating
Material: Brass
Shielded: Yes
Temperature Range: -40-75°C
Voltage: 500 V
Wire Material: Bare Copper Covered Steel
Wire Size: 26 AWG
$47.37Each-EA
