Pomona

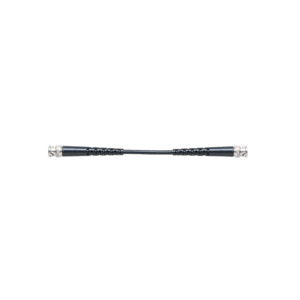

Pomona EM2249-C-1200 Cable Assembly w/BNC (M), RG58C/U, 50 Ohms, 1200” Long, 2249 Series
Our Part #34798.1
Mfr Part #EM2249-C-1200
Pomona
Pomona EM2249-C-1200 Cable Assembly w/BNC (M), RG58C/U, 50 Ohms, 1200” Long, 2249 Series
Our Part #34798.1
Condition:New
Mfr Part #EM2249-C-1200
$138.99EACH
Condition:New
- Description
- Specifications
- Documents
- The molded strain relief is directly bonded to the cable jacket for superior strength and durability.
- PTFE insulation and nickel tarnish resistant outer shells used in the BNC connector provide long life and reliability.
- Gold-plated center contacts assure the most noise free connection possible.
- The connectors and cable are impedance matched.
Brand: Pomona
Series: 2249 Series
Voltage: 500 V
Cable Diameter: 0.195"
Cable Length: 1200"
Cable Type: RG58C/U
Capacitance: 32.2pF
Contact Finish: Gold Plated
Contact Material: Brass
Finish: Tarnish Resistant Nickel Plated
Impedance: 50 Ω
Jacket Material: Polyvinyl Chloride Non-Contaminating
Material: Brass
Shielded: Yes
Temperature Range: -40-85°C
Wire Material: Tinned Copper
Wire Size: 20 AWG
$138.99EACH
